Kongsberg X Series

Features

Want to talk to a specialist? Just leave your contact info and we'll get back to you.

Kongsberg X Tool Heads:

Powerful & Versatile

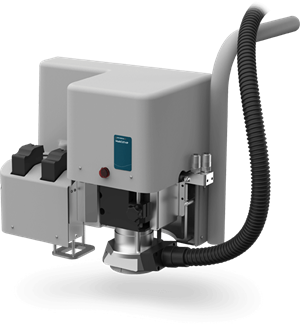

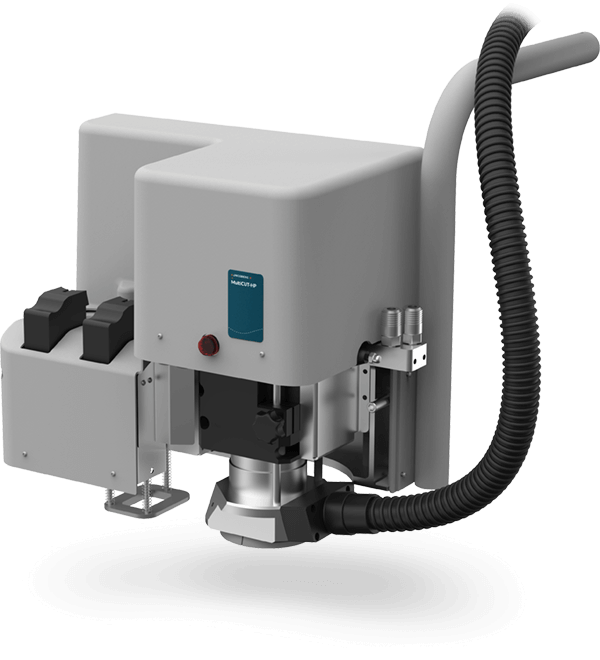

Kongsberg X MultiCUT-HP
MultiCUT-HS / HP

The MultiCUT-HS spindle is the perfect option for a shop who want to support a wide variety materials and applications with minimal change over time. The head allows you to jump from kiss cutting vinyl to milling ACM without the need for any manual intervention and still delivers an extremely high-quality finish.

The MultiCUT-HP (High Power) is equipped with a super-strong, liquid-cooled milling spindle delivering several times higher productivity than less powerful alternatives. This is a great choice for shops who need extended milling duty cycles and/or who work extensively with heavy-duty materials (thick sheets of acrylic, wood/MDF and aluminium composite material).

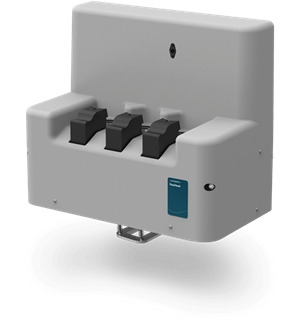

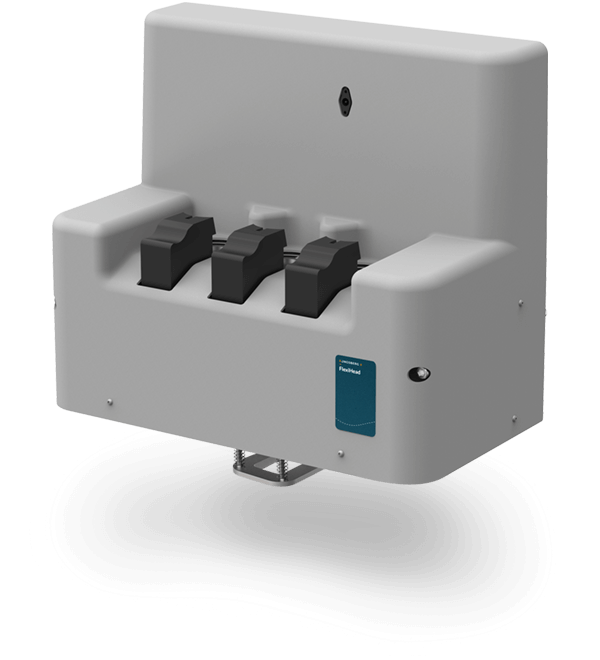

Kongsberg X FlexiHead
FlexiHead

The FlexiHead offers highly accurate, powerful cutting on all flexible and thin materials (paper, folding carton, textile, vinyl...). Three configurable tool stations accommodate a full range of standard tool inserts. Specially designed knife and crease tool inserts are available to produce folding cartons with the same high throughput as corrugated jobs.

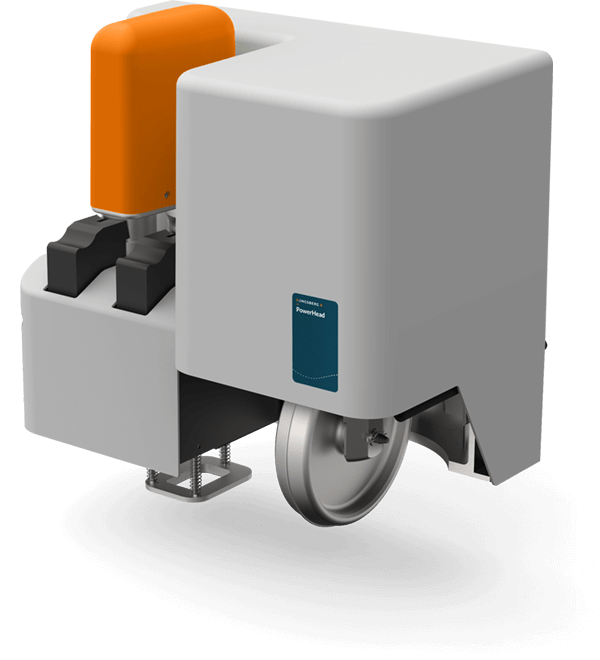

Kongsberg X PowerHead
PowerHead

The PowerHead excels on heavy duty material (honeycomb boards, triple wall and recycled board...). It features 150 mm (6“) diameter crease wheels and additional scoring pressure with the equivalent of 50 kg (110 lbs) down force. The large wheels enable creasing high recycle content boards without breaking the liner. The knife adapter also offers V-notch cutting, enabling mitered and extremely precise folds when producing heavy-duty containers and paper core board displays.

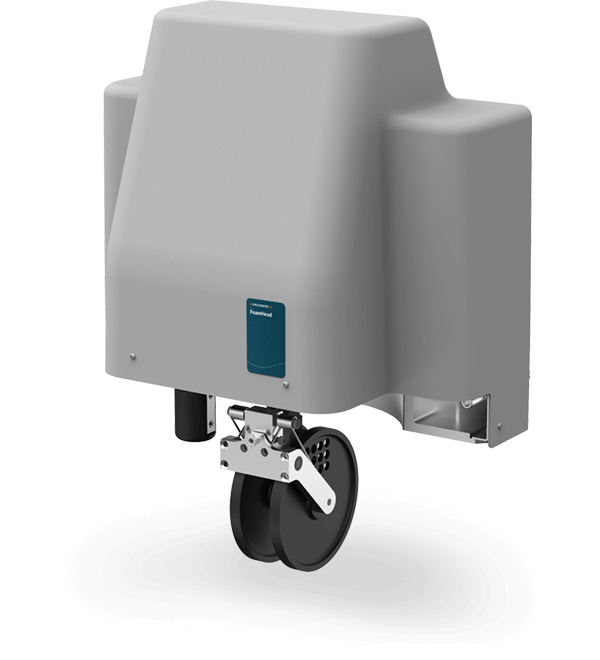

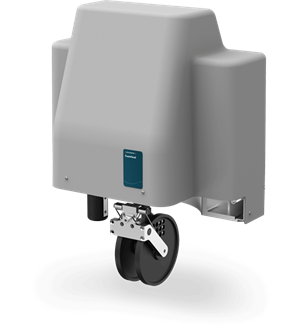

Kongsberg X FoamHead
FoamHead

The FoamHead uses a reciprocating knife to handle foam materials with a maximum thickness of 86 mm [3⅜”]. With serrated-edge blades, it can also manage thick honeycomb paperboard. Three blade adapters control the blade length so it can be matched to material thickness. And, it is easy to program accurate partial through cuts thanks to the advanced Z-axis control.

Technical specifications

  X20 X22 X24 X44 X46 X48
Work area, all tools
1680 x 1270
66 x 50
1680 x 2190
66 x 86
1680 x 3200
66 x 126
2210 x 3200
87 x 126
2210 x 4800
87 x 189
2210 x 6550
87 x 258
mm
in.
Max. material size 1740 x 1750
68 x 69
1740 x 2570
68 x 101
1740 x 3575
68 x 140
2270 x 3575
89 x 140
2270 x 5250
89 x 206
2270 x 6930
89 x 273
mm
in.
Max. material width, w/ conveyor system 1680
66
1680
66
1680
66
2210
87
2210
87
n/a mm
in.
Overall dimensions w/ front panel
2780 x 2450
109½ x 96½
2780 x 3040
109½ x 119½
2780 x 4050
109½ x 159½
3300 x 4050
130 x 159½
n/a n/a mm
in.
Overall dimensions w/ revolving workstation
3600 x 2160
141¾ x 85
3600 x 2950
141¾ x 116
3600 x 3960
141¾ x 156
4070 x 3960
160¼ x 156
4070 x 5640
160¼ x 222
4070 x 7320
160¼ x 288¼
mm
in.
Weight 455
1000
525
1150
630
1390
815
1800
1150
2540
1485
3270
kg
lbs
Max. speed 50
833
33
m/min
mm/sec
IPS
Max. acceleration 0.56 G 0.54 G

Vacuum sections 2 4
Standard traverse clearance (excl. cutting underlay) 50
2
mm
in.
Optional traverse clearance (excl. cutting underlay)
 95
mm
in.
