High-performance routing with the Apex3R Evo

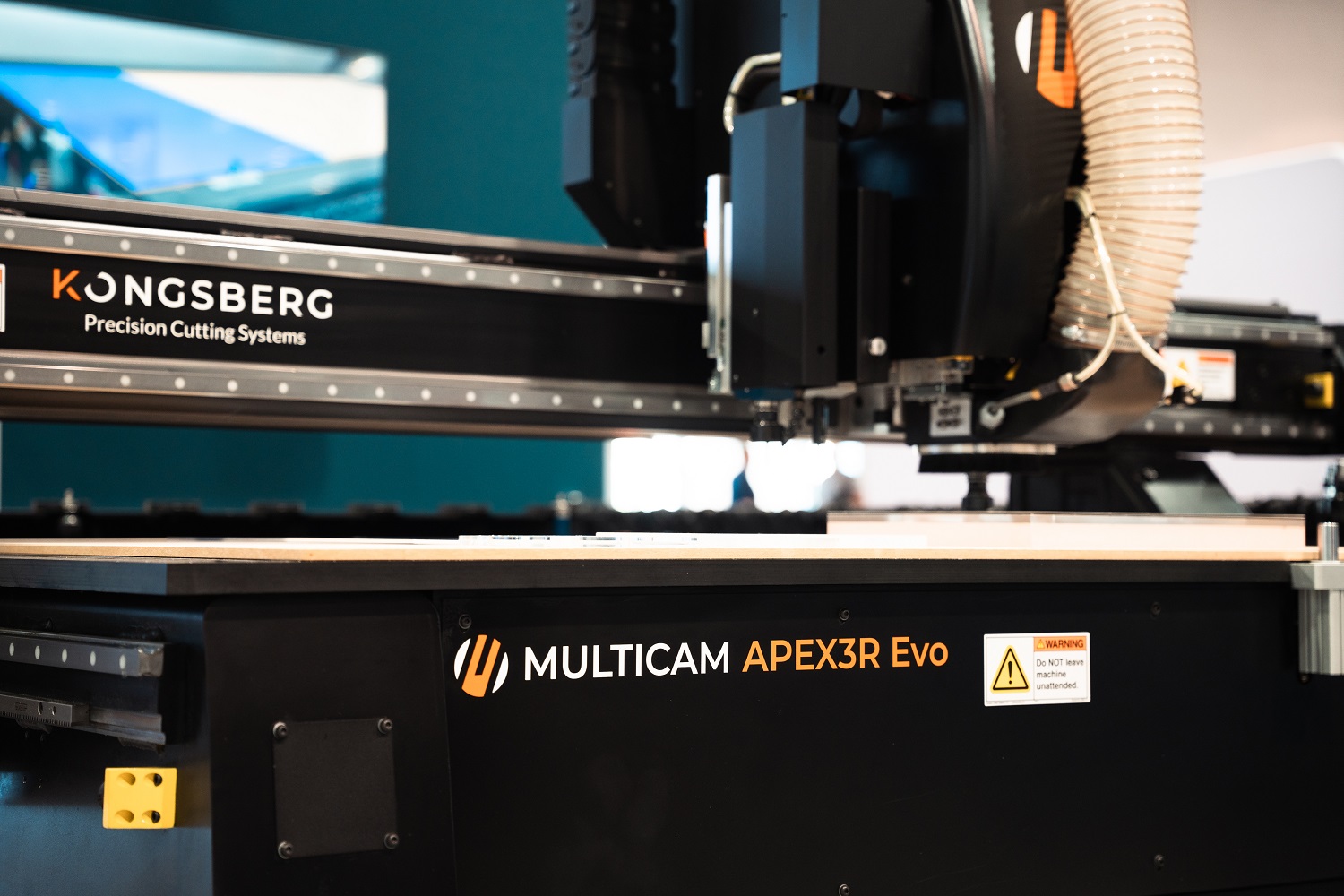

The Apex3R Evo combines high-quality cutting, excellent edge quality and versatile production capabilities in an accessible CNC router.
Performance
Superior standard
Raising the bar for superior standard routing capabilities even higher, the Apex3R Evo is packed with features as standard that you normally only get when you buy much more expensive machines, making it the ideal solution for meeting the high-volume production needs of various industries.
Perfect results for a wide range of applications
With cut speeds up to 1,950 inches per minute (IPM), the Apex3R Evo offers world class motion, speed, and cut quality.
Designed and engineered to cater to a wide range of applications, the incredibly versatile Apex3R Evo not only offers excellent routing capabilities for dense substrates, but also delivers precise edge quality, capable of mirror edge finish on aluminum and acrylic.
Capabilities
Everything you need for high-volume production
Durability for better routing quality

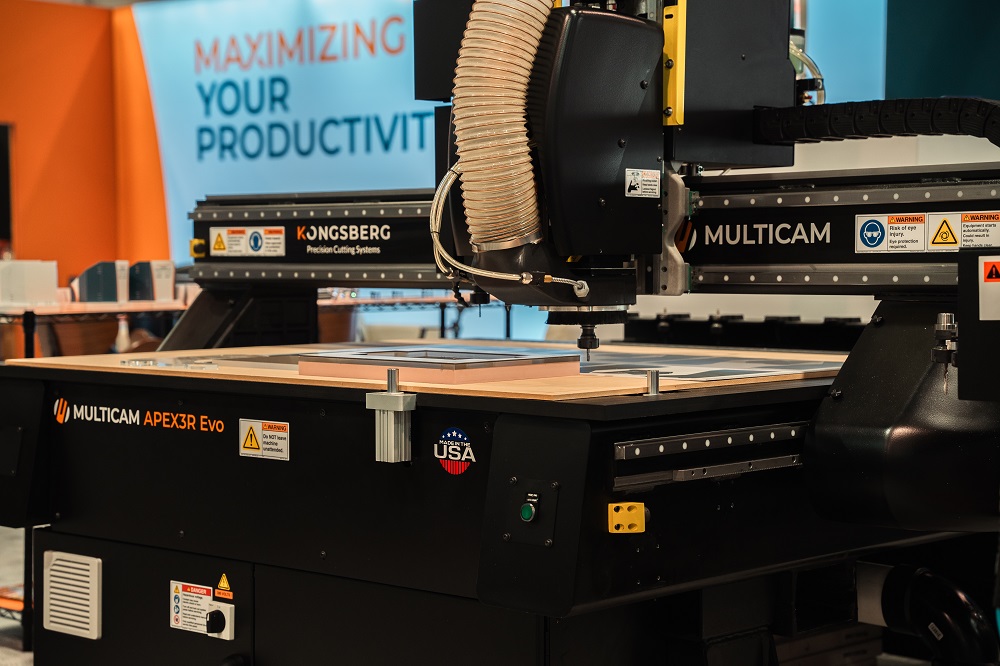

The Apex3R Evo features a heavy all-steel tube frame, high-precision gearbox and a tightly tuned servo system creating a rigid CNC machine that delivers pristine cut quality with precise accuracy.
- Heavy all-steel tube frame
- High-precision gearbox
- Tightly tuned servo system
A three-axis motion control system gives you tight control over routing quality even when cutting through materials up to 5 inches thick, for precision and quality cutting your customers will love.
Route and cut more - Better, and faster
The Apex3R Evo is suitable for a wide range of jobs using different tools and materials.
- Suitable for a wide range of jobs
- Different tools and materials
- Routing and cutting applications
The updated knife design offers better cut performance on even more materials than before.
Condensed knife system

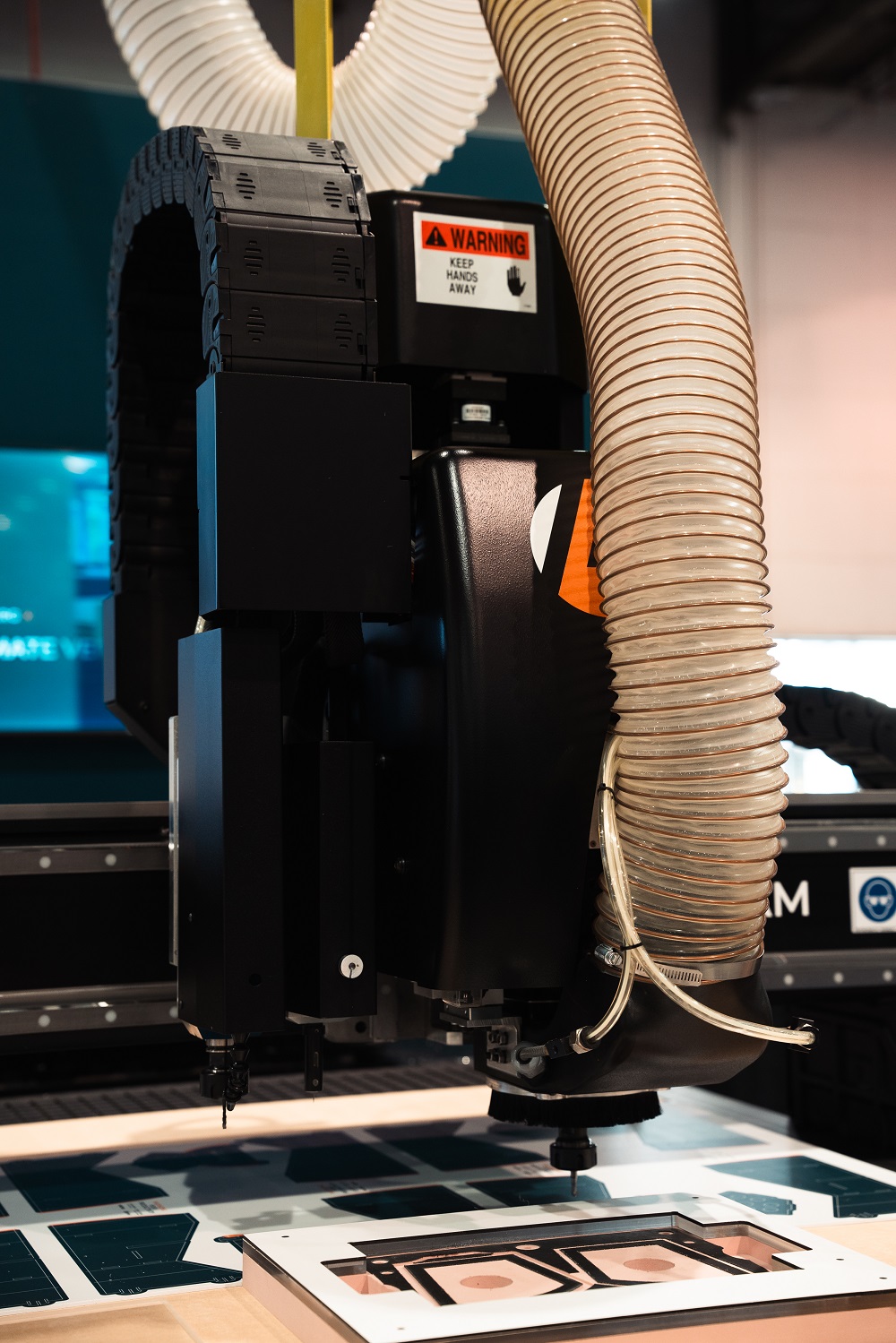

The Apex3R Evo features a newly designed condensed knife system for improved cut quality and productivity, upgraded tapping features to simplify and streamline production, and an improved dust boot providing better particulate pick-up.
- Improved cut quality and productivity
- Upgraded tapping features
- Improved dust boot providing better particulate pick-up
The machine can use up to 10 different tap sizes in one job, requiring less operator intervention and delivering more automation.
Cleaner operation, easier control
A newly designed dust boot provides better particulate pick-up and improved flow design.
- Better particulate pick-up
- Improved flow design
- Improved table access and EZ Control
Ease of use is enhanced through improved table access and EZ Control, making operation easier for users of all levels.
Features
High quality at an affordable price
With the Apex3R Evo CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of MultiCam’s unique manufacturing processes that keep high quality affordable.
Basic information
- Table sizes:
- 103 - 54" x 100", 1346 x 2489 mm
- 204 - 64" x 121", 1626 x 3073 mm
- 304 - 84" x 121", 2133 x 3073 mm
- 405 - 105" x 145", 2667 x 3683 mm
- 5.5–13.4 HP
- Cut speed: up to 1,950 IPM / 49.5 m/min
- (Features subject to change without notice)
- Rapid traverse: 2,758 IPM / 70 m/min
- Z-axis clearance: 6"–8"
- Drive system Z axis: ball screw
- Maximum material thickness: up to 5" / 127 mm
- Repeatability: +/- 0.001" / 0.025 mm
- Drive system X and Y axes: helical rack
- Weight:
- 3,150 to 4,400 lbs.
- 1,428 to 1,995 kg
- Standard work surface: 1" / 25 mm phenolic
- 25 mm linear ball-bearing profile rails
Standard Features
- Heavy, all-steel tube frame construction
- Steel gantry
- High-precision gearbox and tightly tuned servo system
- Three-axis motion control system
- Absolute encoders
- MultiCam EZ Control operator interface
- Automatic material surface probe and tool calibration sensor
- Motorized dust boot with improved particulate pick-up
- Quick-release bristles and spring-loaded glide pad
- Integrated misting nozzle
- Unlimited file size transfer capabilities
- Brushless digital AC servo drive system
- EZ Suite Software
- Features subject to change without notice
Options
- Vacuum table and pumps
- Collet and ATC spindle options from 5.5 to 13.4 HP
- Linear automatic tool changer
- MultiCam CNC knife with optional cutting heads
- Quick Change knife and tapping capabilities
- Electric oscillator knife with 2mm or 5mm stroke
- MultiVision digital registration system
- Coolant mist system for non-ferrous metal cutting
- Tangential knife cutters
- Locator pins
- Knife and rotary tool changer
-
