Take Up Unit for flexible materials


Easy roll-to-roll workflow


Roll-to-roll workflows made easy

The Kongsberg Take Up Unit for flexible materials makes roll-to-roll workflows easier. The unit makes finishing digitally printed jobs on rolls, and collecting waste, very straightforward.

The Take Up Unit is simple to install for any Kongsberg table equipped with a conveyor feed system. The unit is hassle-free to operate and can easily be moved away when it’s not needed.

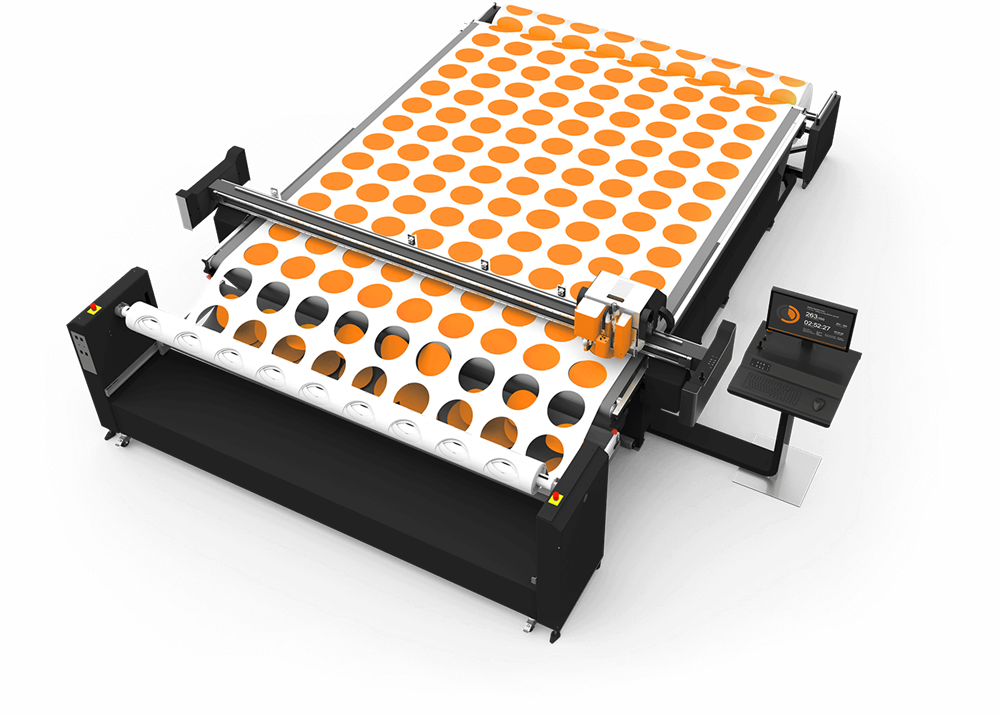

Kongsberg Automation: Take-Up Unit
The Take Up Unit is indispensable for roll to roll cutting of flexible materials like:
Adhesive vinyl
Adhesive vinyl
Textile
Textile
Banner material
Banner material

Winding roll to roll

The Kongsberg Take Up unit is perfect for kiss-cutting adhesive vinyl. The cut material ends up on a neatly wound roll so it becomes easier to handle in the rest of the workflow (e.g. when stripping and adding application tape).


Winding up waste material

Separating the waste from your finished material can be a hassle. It takes time, effort, and your waste bin fills up quickly.

The Kongsberg Take Up Unit makes this a whole lot easier and cost efficient. The finished material ends up in the integrated collector basket automatically; the waste material is wound on another roll.


Specifications

The Kongsberg Take Up Unit for flexible materials can be installed on all new Kongsberg X and Kongsberg C tables; and on existing Kongsberg i-XL, Kongsberg XN, Kongsberg XP and Kongsberg C tables.

A Waste Handling Kit is available as an option. The kit makes sure that the waste material doesn’t get displaced or wrinkled during collection.


Take Up Unit 2 Take Up Unit 6
Max roll width 1680mm / 66 inch 3200mm / 125 inch
Max roll diameter 470mm / 18 inch 470mm / 18 inch
Max roll weight 300kg / 660 lbs. 300kg / 660 lbs.
External dimensions without textile option
(roll excluded) (h x w x l)
1225 x 650 x 2225 mm
48,5" x 26" x 88"
1225 x 650 x 3745 mm
48,5" x 26" x 147,5"
External dimensions without textile option
(roll included) (h x w x l)
1310 x 650 x 2225 mm
52" x 26" x 88"
1310 x 650 x 3745 mm
52" x 26" x 147,5"
External dimensions with textile option in transport position
(roll excluded) (h x w x l)
1305 x 720 x 2225 mm
51,5" x 28,5" x 88"
Note: textile optional on Take Up unit 2
1305 x 720 x 3745 mm
51,5" x 28,5" x 147,5"
External dimensions with textile option on Kongsberg table
(roll included) (h x w x l)
1310 x 1080 x 2225 mm
52" x 43" x 88"
Note: textile optional on Take Up unit 2
1310 x 1080 x 3745 mm
51" x 43" x 147,5"
