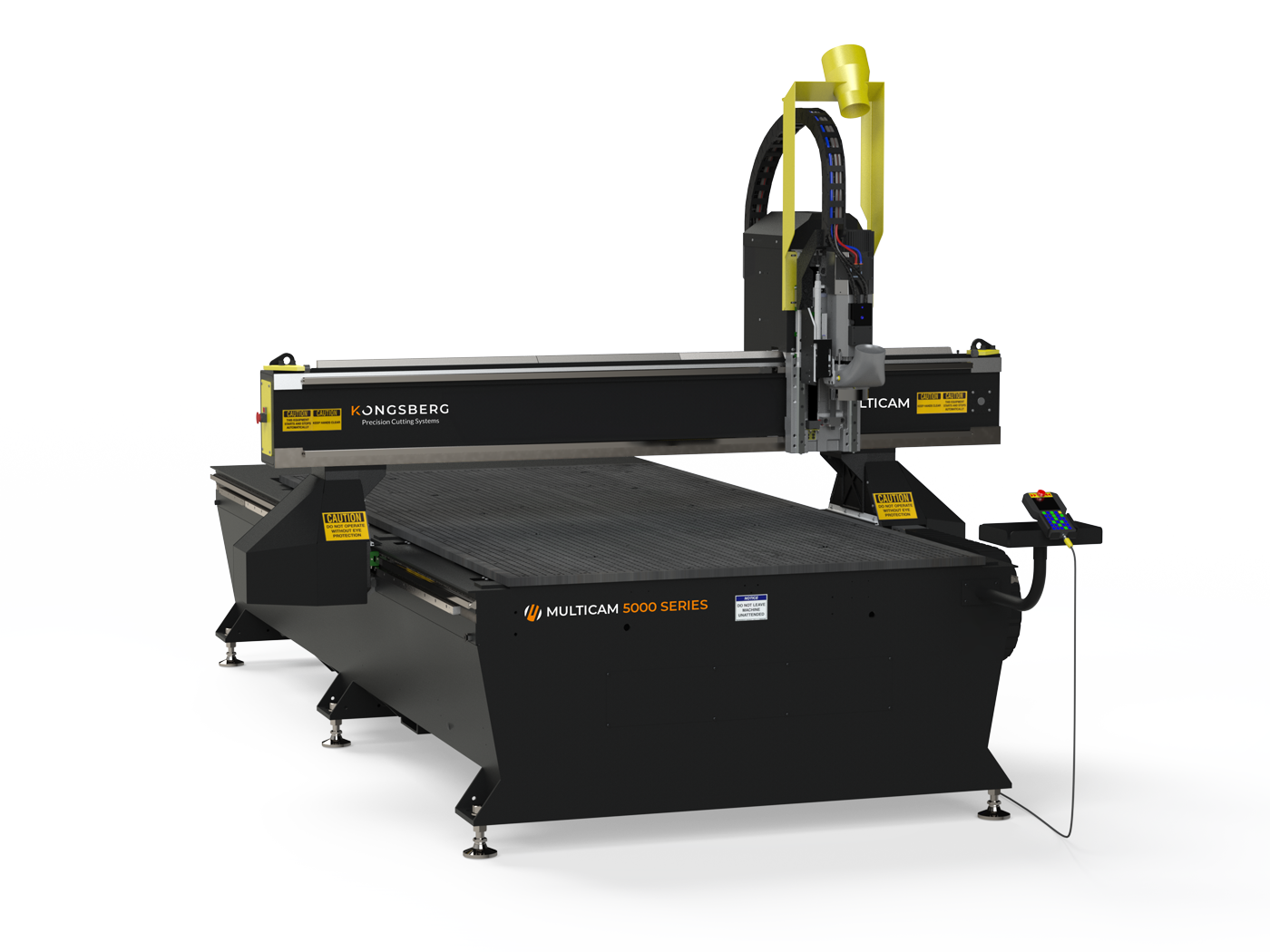

Features of the 5000 Series CNC Router

Exceptional standard features

• High horsepower spindle

  Accommodate larger diameter tooling with a 13.4, 16 or 20 HP spindle to cut dense materials that demand higher torque capacity.

• Brushless digital AC servo drives

  The heavy-duty servo motors, and hightorque precision gearbox assemblies, support a high-speed three-axis motion-control platform that is designed to optimize performance, minimize vibration, and improve acceleration.

• Intuitive operator interface

  The MultiCam EZ Control® interface and EZ G-Code™ software provide operators with a user-friendly platform to set up, configure, and operate the machine. This easy-to-use interface streamlines the manufacturing process and ensures maximum efficiency and output.

• New all-steel tube frame

  The robust, all-steel gusseted welded plate frame construction provides exceptional rigidity and durability, even under heavy cutting loads.

• Tapping made easy

  The pneumatic quick change rotary unit adds knife and tapping tool change capabilities.

Made for the toughest workplace conditions

Featuring a robust all-steel tube frame, and spindle options from 5.5 up to 20 HP, the 5000 Series CNC router is a long-standing favorite in the industry.

This machine delivers exceptional dimensional accuracy, superior edge quality, and boosts optimum cut speeds of up to 1,600 inches per minute (IPM).

A 3,000 IPM (76m/min.) rapid traverse means this router moves quickly enough to keep your productivity high.

With a consistent repeatability of just 1/1000th of an inch (0,025mm), your cutting accuracy always stays superior.

The working area varying from 50” x 50” (127cm x 127cm) to 120” x 242” (305cm x 615cm) makes the 5000 Series a great fit for smaller to large production facilities.

A multitude of productivity options

Consider taking your production speed and finishing quality to the next level with these productivity options*:

• The gantry-mounted automatic 12-position rotary tool carousel enables rapid tool changes, allowing for efficient completion of your files.
• The high-speed and high-horsepower spindle accommodates larger diameter tooling, making it ideal for cutting dense materials that demand higher torque capacity.
• 7.5 HP HSD Collet Spindle
• Pneumatic Quick Change for Knife and Tapping Tools
• Dual Knives
• 5x5 Gang Drill Bank
• MultiVision Digital Registration System
• MultiCam CNC Knife with optional cutting heads
• Z-axis clearance options: 12” or 16”
• MultiVision™ Digital Registration System

* options subject to change without notice
